Fatigue-Resistant
Phosphor Bronze Sheets
Shainal Steel India engineers high-performance C51000 and C52400 phosphor bronze plates. Known for their exceptional elasticity, wear resistance, and fine grain structure, our sheets are the industry standard for electrical contacts, diaphragms, and heavy-duty bushings.
Precision Sizes
Thickness: 0.1mm to 100mm. Widths up to 400mm.
Wear Resistance
High tin content provides superior load-bearing capacity and low friction.
Corrosion Proof
Excellent resistance to seawater and chemical environments.
Global Standards
Compliant with ASTM B103, BS PB102, and JIS H3110.
Inventory Grades
Stocking PB101, PB102, and C54400 sheets for electrical and mechanical applications.
PB 101 Phosphorous Bronze Sheet

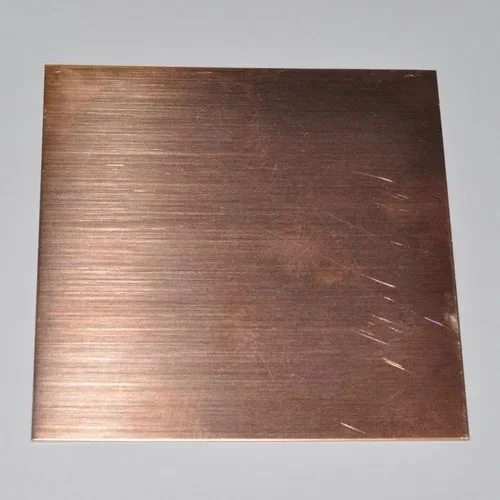

PB 102 Phosphorous Bronze Sheet

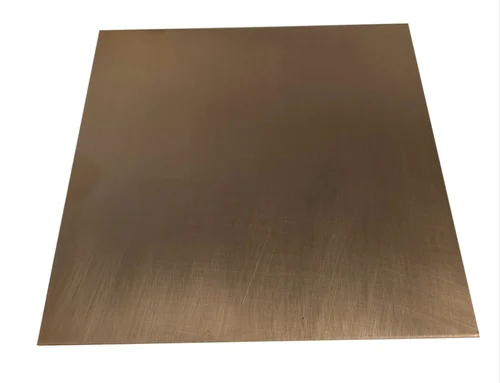

PB 103 Phosphorous Bronze Sheet

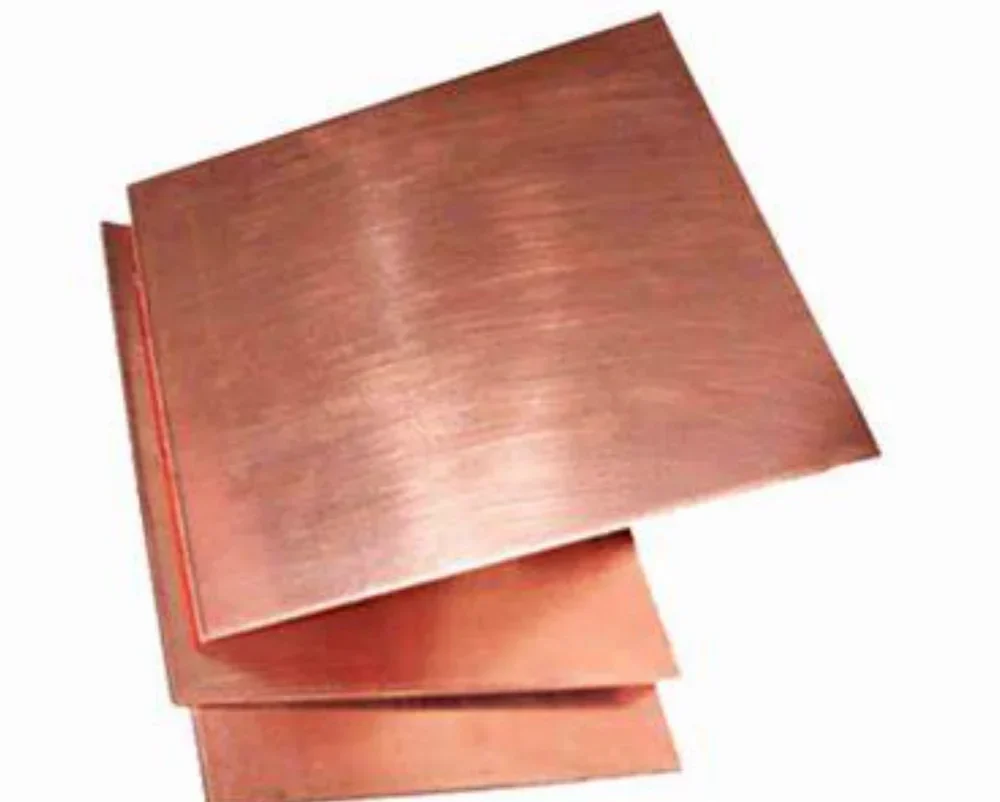

PB 2 Phosphorous Bronze Sheet
C51000 Phosphorous Bronze Sheet

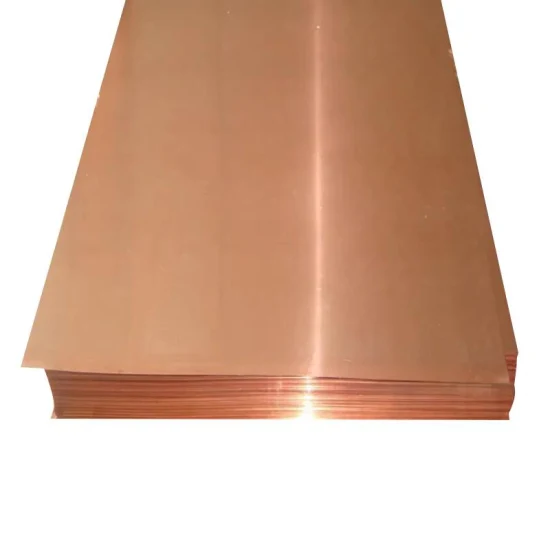

C54400 Phosphorous Bronze Sheet
C93200 Phosphorous Bronze Sheet

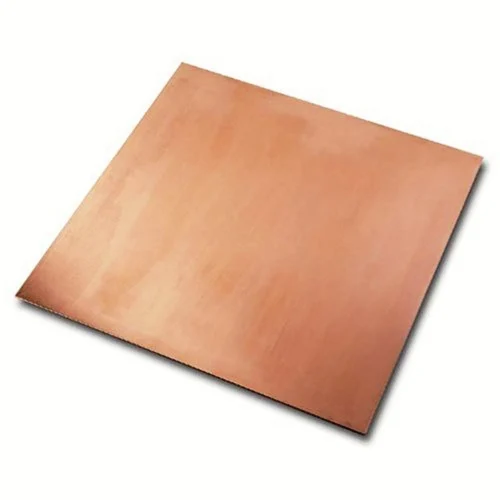

C-92200 Phosphorous Bronze Sheet
Technical Specifications
Equivalent Standards
Chemical Composition
Mechanical Properties
| Temper | Size Range | Tensile (kg/mm²) | Elongation |
|---|---|---|---|
| Half-Hard | Up to 12.5mm | 40 min | 18% |
| Half-Hard | 12.5 to 50mm | 38.5 min | 18% |
| Half-Hard | 50 to 100mm | 35 min | 18% |
Export-Ready
Logistics Solutions
Phosphor bronze sheets require careful handling to maintain their surface finish and flatness. We utilize reinforced wooden boxes and moisture-proof wrapping for secure global transit.
