High-Strength
Phosphor Bronze Rods
Shainal Steel India engineers premium C52100 and C54400 phosphor bronze bars. Renowned for their exceptional fatigue strength, wear resistance, and anti-friction properties, our rods are the industry standard for heavy-duty bearings, gears, and marine shafts.
Precision Sizes
Diameter: 3mm to 400mm. Hex: 10mm to 60mm. Square: 20mm to 200mm.
Machinability
Superior free-cutting properties for intricate component manufacturing.
Corrosion Proof
Excellent resistance to seawater and chemical environments.
Global Standards
Compliant with ASTM B139, BS 2874, and JIS H3300.
Inventory Grades
Stocking PB101, PB102, and C54400 rods for electrical and mechanical applications.

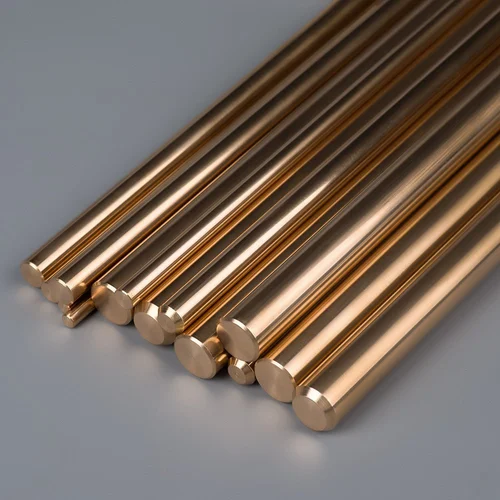

PB 101 Phosphor Bronze Rod

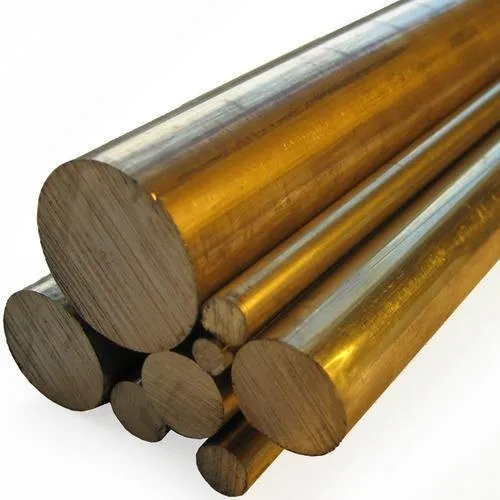

PB 102 Phosphor Bronze Rod

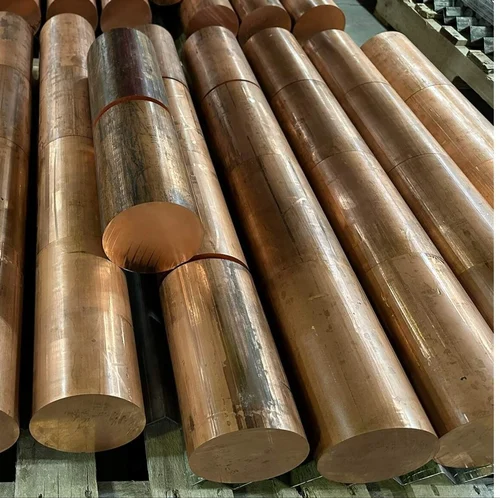

PB 103 Phosphor Bronze Rod
PB 2 Phosphor Bronze Rod
C51000 Phosphor Bronze Rod

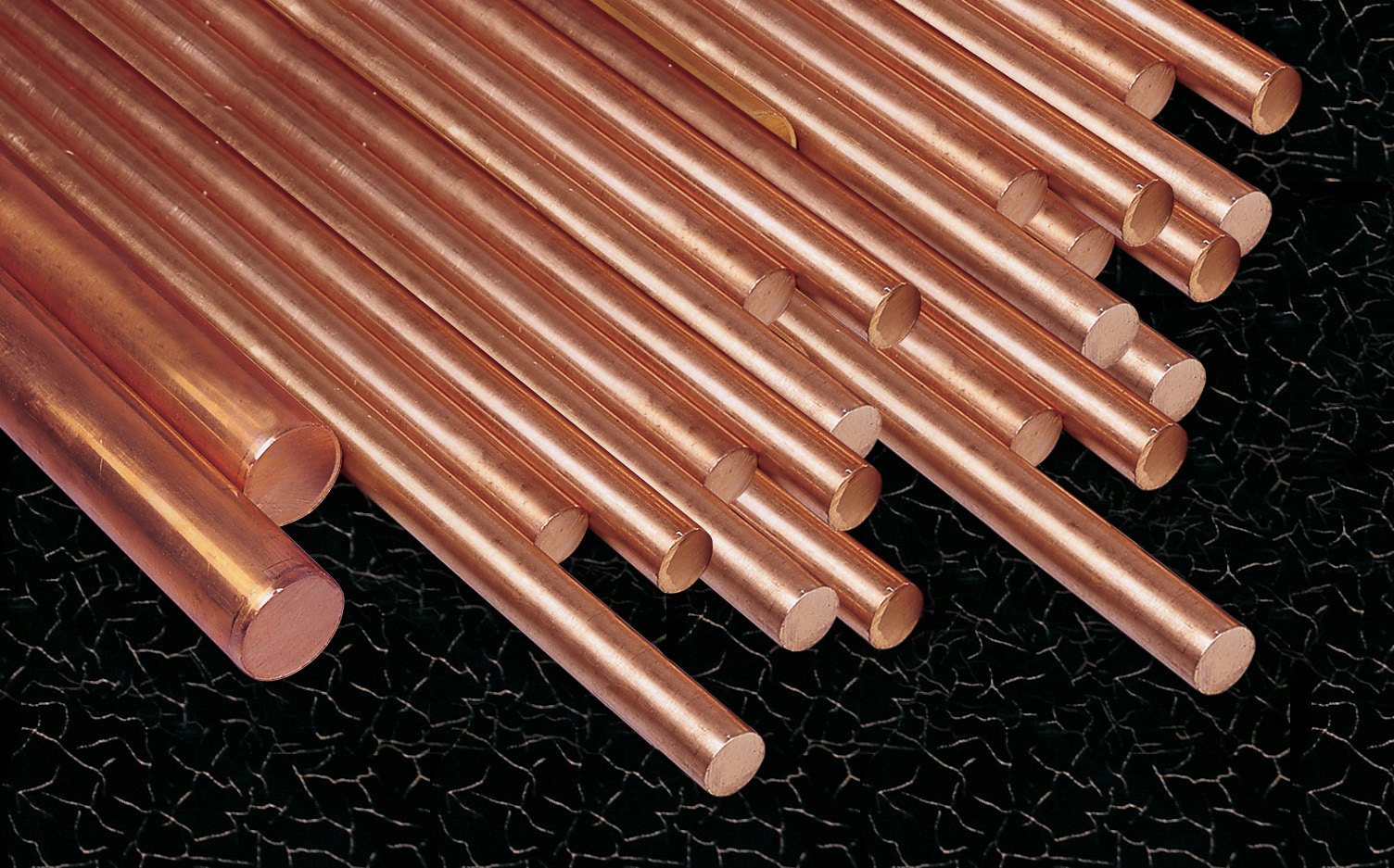

C54400 Phosphor Bronze Rod

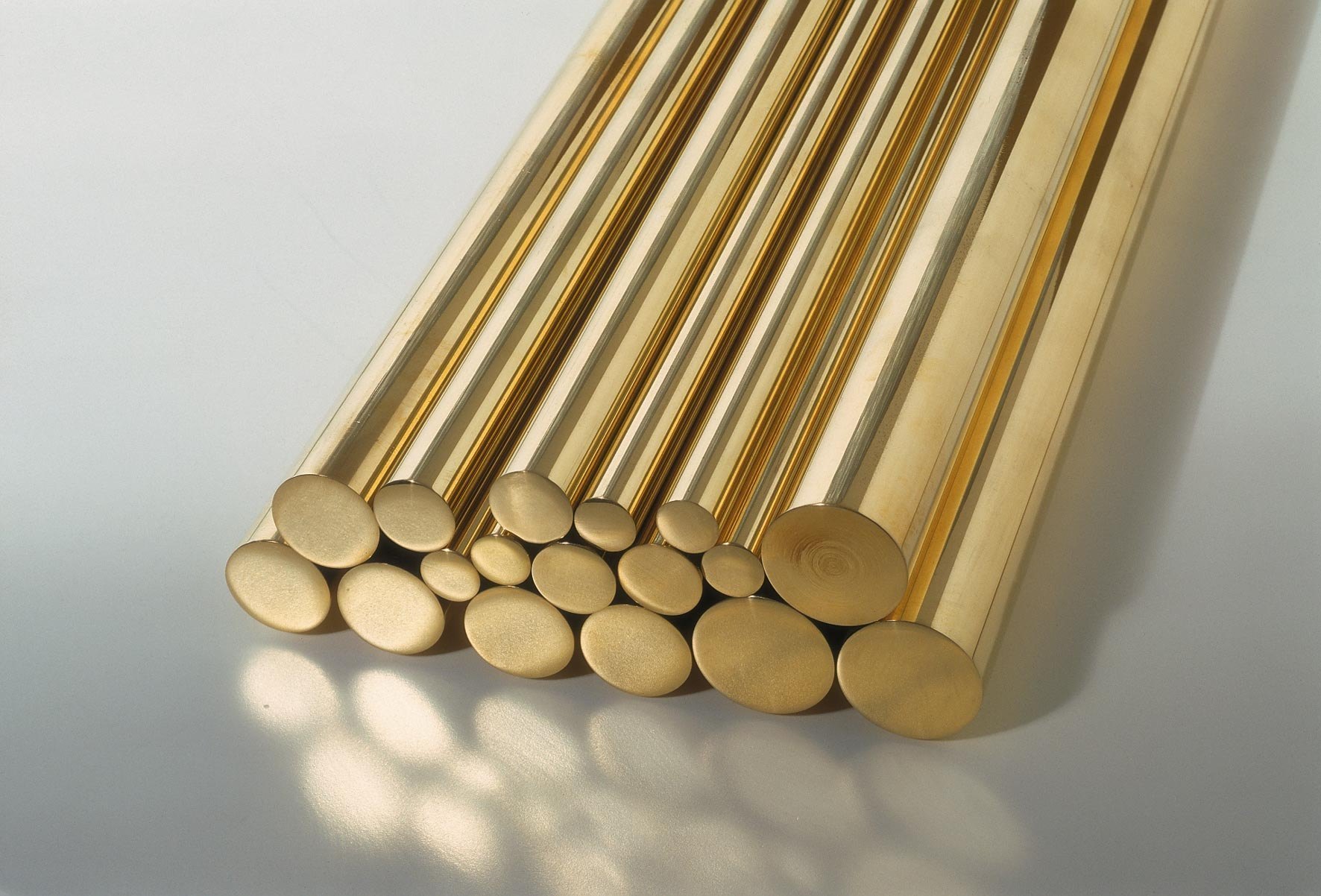

C93200 Phosphor Bronze Rod
C92200 Phosphor Bronze Rod
Technical Specifications
Chemical Composition
*Remainder: Zinc (Zn) and Lead (Pb) where applicable.
Thermal Properties
Mechanical Properties
| Grade | Proof Stress | Tensile | Hardness (HB) |
|---|---|---|---|
| PB1 (89/10/01) | 130 | 250 | 60 |
| PB1 (88/12) | 140 | 260 | 80 |
| PB1 (90/10) | 130 | 250 | 60 |
| LPB-1 | 80 | 175 | 60 |
Export-Ready
Logistics Solutions
Phosphor bronze rods require careful handling to maintain their straightness and surface finish. We utilize reinforced wooden boxes and moisture-proof wrapping for secure global transit.
