High-Conductivity
Copper Plates
Shainal Steel India is a top-tier manufacturer of ASTM B152 UNS C11000 and C10100 copper plates. We produce 99.9% pure, Oxygen-Free High Conductivity (OFHC) plates engineered for the most demanding electrical, marine, and high-temperature industrial environments.
Precision Range
Thickness from 0.03 mm to 100 mm and widths up to 1250 mm.
Pure OFHC Grade
Oxygen-Free High Conductivity prevents hydrogen embrittlement.
Heat Resistance
Superior thermal stability and conductivity (391.2 W/m.K).
Rigorous Testing
Ultrasonic flaw detection, Tensile, and Hardness verified.
Plate Inventory Profiles
Available in Annealed, Half-Hard, and Full-Hard tempers for diverse engineering requirements.
Copper Hot Rolled Plate
Standard industrial plates with superior structural uniformity.

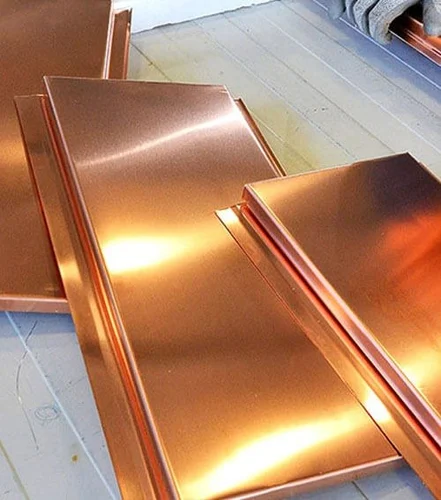

Copper Plates
Bi-metal solutions for specialized aerospace shielding.

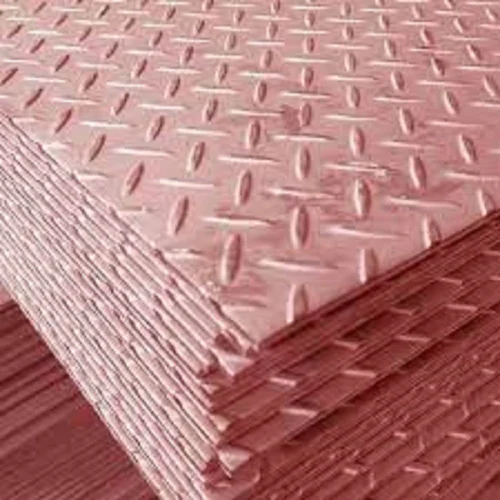

C103 Chequered Sheet
Embossed patterns for industrial safety and anti-slip use.
Technical Hub & Sizing
Copper Plate Weight Reference Matrix (Kg)
| Thickness (mm) | 4 X 2 Sheet | 2M X 1M Sheet | 2.5M X 1.25M Sheet |
|---|---|---|---|
| 0.35 mm | 2.37 | - | - |
| 0.50 mm | 3.30 | 8.93 | - |
| 1.00 mm | 6.60 | 17.86 | - |
| 2.00 mm | 13.3 | 35.72 | 56 |
| 5.00 mm | 33.1 | 89.3 | 140 |
| 10.0 mm | - | - | 279 |
| 50.0 mm | - | 893 | - |
| 150.0 mm | - | 2680 | - |
Chemical Composition (Max %)
UNS C10100
UNS C11000
UNS C12200
Mechanical Integrity
Physical Constants
Density
8.92 g/cm³
Melting Point
1083 °C
Elastic Modulus
117 GPa
Thermal Expansion
16.9 /K
Engineered for
Global Transit
Copper surface integrity is critical for conductivity. Our plates are processed through multi-layer protection protocols to eliminate oxidation and physical deformation during sea and air freight.
