High-Voltage Engineering SolutionsSuperior Conductivity
Superior Conductivity

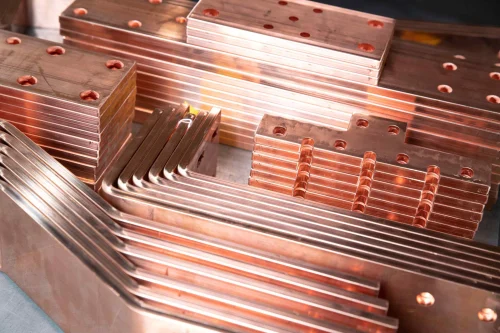

Copper Busbars.
Shainal Steel India engineers high-performance Copper Busbars for switchgears and transformers. Our UNS C10100/C11000 grades offer 99.9% purity, eliminating hydrogen embrittlement risks and ensuring optimized power distribution across industrial grids.
Standard Range
- • Thickness: 2mm to 100mm
- • Width: 10mm to 300mm
- • ASTM B187 & BS EN 13601
Core Testing
- • IACS Conductivity Verification
- • Precision Dimensional Inspection
- • Temper Compliance Analysis
Performance
- • 100% IACS Conductivity
- • Zero-Deformation Thermal Limit
- • Custom Finish: Bright, Bare, Tinned
Available High-Performance Grades
Available in Soft (Annealed), Half-Hard, and Hard tempers to suit specific industrial requirements.

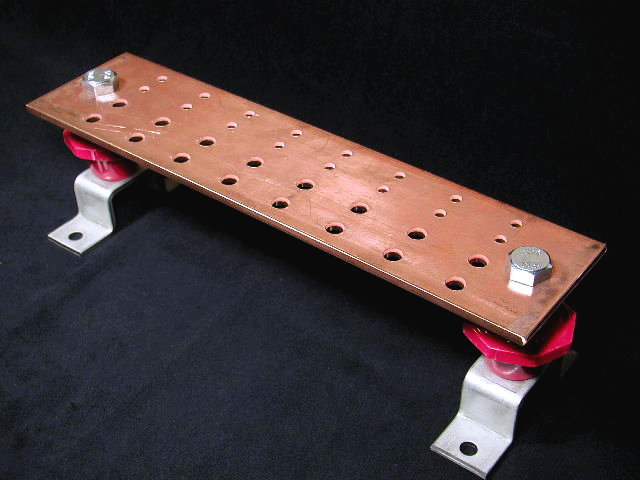

C11000 Copper Busbar
C10200 Copper Busbar
C12200 Copper Busbar
C22000 (CUZN10) Copper Busbar
Weight Chart Matrix
| Size Profile | 1 Mtr Wt (KG) | 3.66 Mtr Wt (KG) |
|---|---|---|
| 16 X 3 | 0.43 | 1.6 |
| 20 X 3 | 0.54 | 1.96 |
| 20 X 5 | 0.89 | 3.26 |
| 20 X 10 | 1.78 | 6.5 |
| 25 X 5 | 1.12 | 4.08 |
| 25 X 12 | 2.67 | 9.78 |
| 40 X 10 | 3.56 | 13.3 |
| 100 X 12 | 10.68 | 39.09 |
| 200 X 10 | 17.08 | 65.15 |
Technical Characteristics
Tensile Strength200 - 400 MPa
Yield Strength40 - 100 MPa
Elongation25% - 55%
Hardness50 - 100 HV
Conductivity100% IACS
Thermal Cond.390 W/mK
Composition Profile
Copper (Cu)99.9% Min
Oxygen (O)0.04% Max
Phosphorus (P)0.01% Max
*Our Oxygen-Free grades prevent hydrogen embrittlement in high-voltage vacuum applications.
Secured Handling & Export Protection
Copper busbars are sensitive to surface indentation and oxidation. We utilize a multi-layered protection protocol to ensure your inventory arrives in showroom condition.
Custom Reinforced Wooden Boxes
Industrial Grade Wooden Pallets
Vacuum-Sealed Shrink Wrapping
High-Density Gunny Layers
Indias Prominent Copper Distribution Network
Fulfilling custom TGB, TMGB, and Earth Bus Bar orders with timely dispatch.
