Aluminium Bronze Plate
Manufacturer in India
Shainal Steel India is a noteworthy Aluminium Bronze Plate Manufacturers in India. Our range of C-95800 Aluminium Bronze Plates Create a product of high strength and excellent resistance to corrosion as well as an optimum durability that makes it ideal to use in marine, aerospace and heavy engineering industries. We follow all specifications of UNS CA-104/C-95400 to make sure the products we deliver perform to the highest standards.
Aluminium Alloy Plate Exporter & Supplier
Our Aluminium Bronze Sheets are also available in various different size, thickness, and dimensions to cater for any project. You can check our range of sheets based on weight and dimensions that you require. We are one of the leading NES 833 Aluminium Bronze Sheet Manufacturers in Mumbai and our alloys provide you with the best value for your investment.
Shainal Steel India is a one of the biggest Aluminium Bronze Plate Manufacturers and Supplier in India. It is our guarantee to provide our customers with PED Approved UNS Cw307G/CA104 Aluminium Bronze Sheets of high uniformity and accuracy.
Global Standards
Products are made to international standards while valued for their high mechanical characteristics including:
- Tensile Strength
- Hardness
- Wear Resistance
- Corrosion Resistance
Aluminium Bronze Plate Specifications
Superior Toughness
- Excellent resistance to impact and shock loads.
- Ideal for applications in marine and offshore industries.
Increased Strength
- Enhanced tensile strength compared to cold-rolled materials.
- Suitable for heavy structural applications.
High Temp Performance
- Maintains strength and integrity even at elevated temperatures.
- Suitable for applications in heat exchangers.
Dimensions
- Thickness: 2mm to 100mm (or as required).
- Width: Up to 4 Feet.
- Length: Up to 8 Feet.
Types of Aluminium Bronze Plate

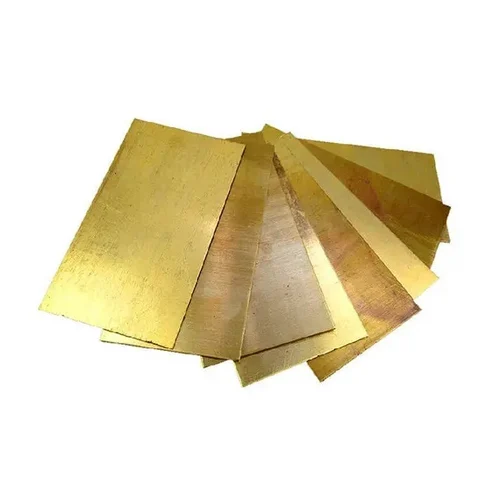

Aluminum Bronze Plate

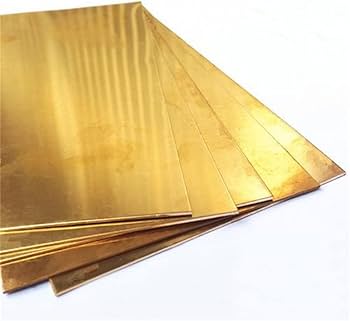

C63000 Aluminum Bronze Plate

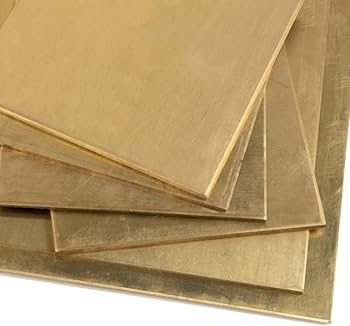

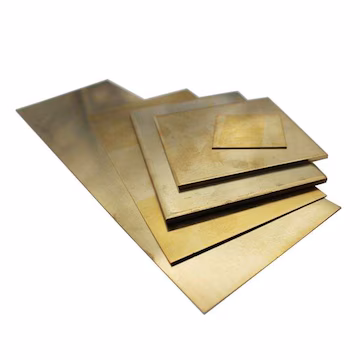

Aluminum Bronze Grade 2 Plate
CUAL10FE5NI5 Aluminium Bronze Plate
Grades Available

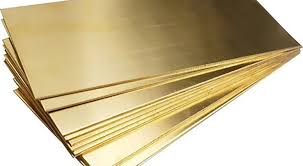

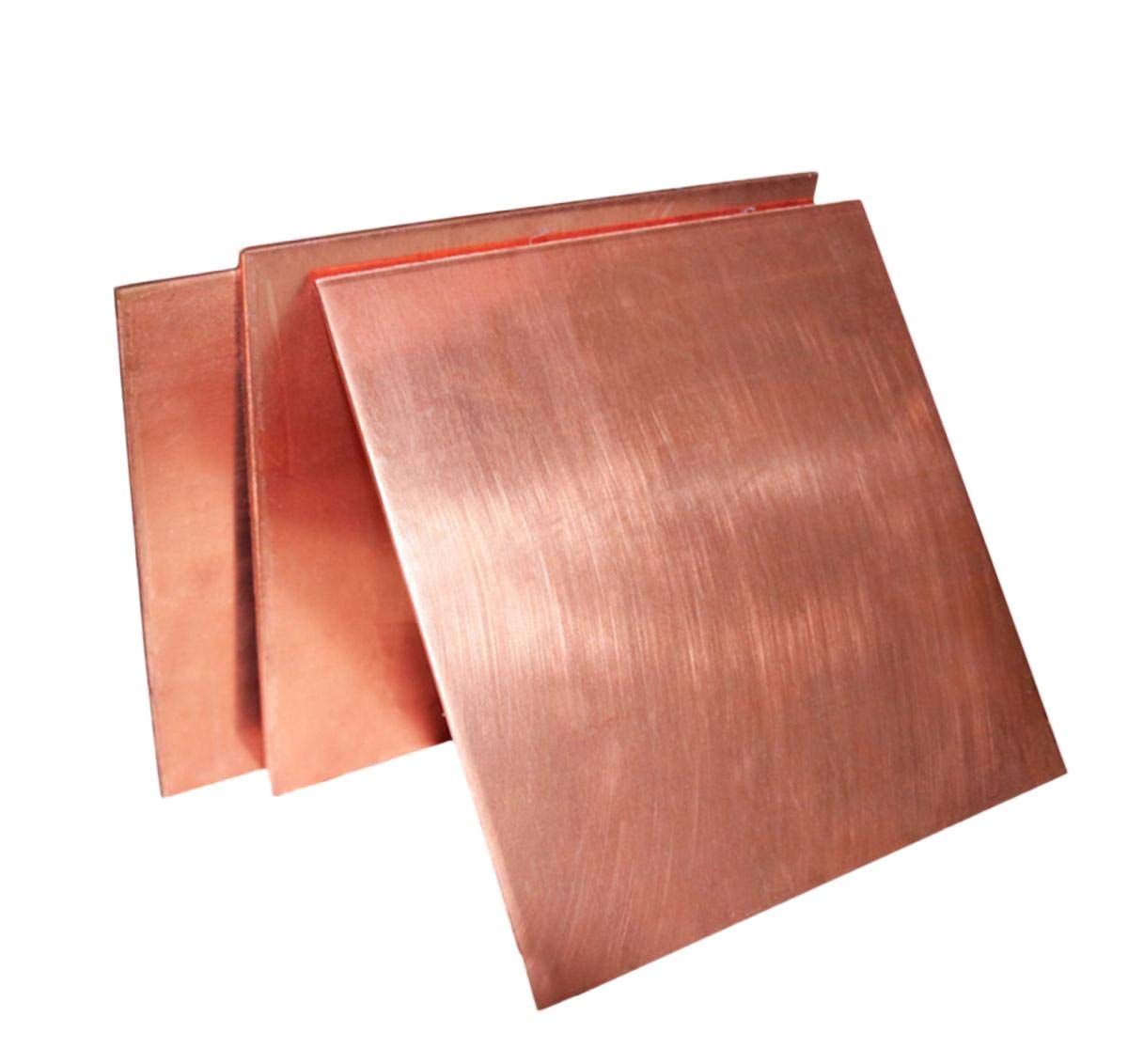

Available in several grades: C95400 for high tensile strength, C95500 for improved service strength, C95200 for machinability, and C95800/C95900 for marine corrosion capability.
Alu Bronze Annealed Plate Physical Property
| Properties | Yield Strength | Poisson’s Ratio | Elastic Modulus | Charpy Impact | Machinability | Izod Impact | Shear Modulus |
|---|---|---|---|---|---|---|---|
| Metric | 380 MPa | 0.34 | 117 GPa | 3.00 J | 20 | 3.00 J | 42.3 GPa |
| Imperial | 55100 psi | 0.34 | 17000 ksi | 2.21 ft-lb | 20 | 2.21 ft-lb | 6140 ksi |
Temps: M30 and O61. Impact tests @ 18.0 to 100°C.

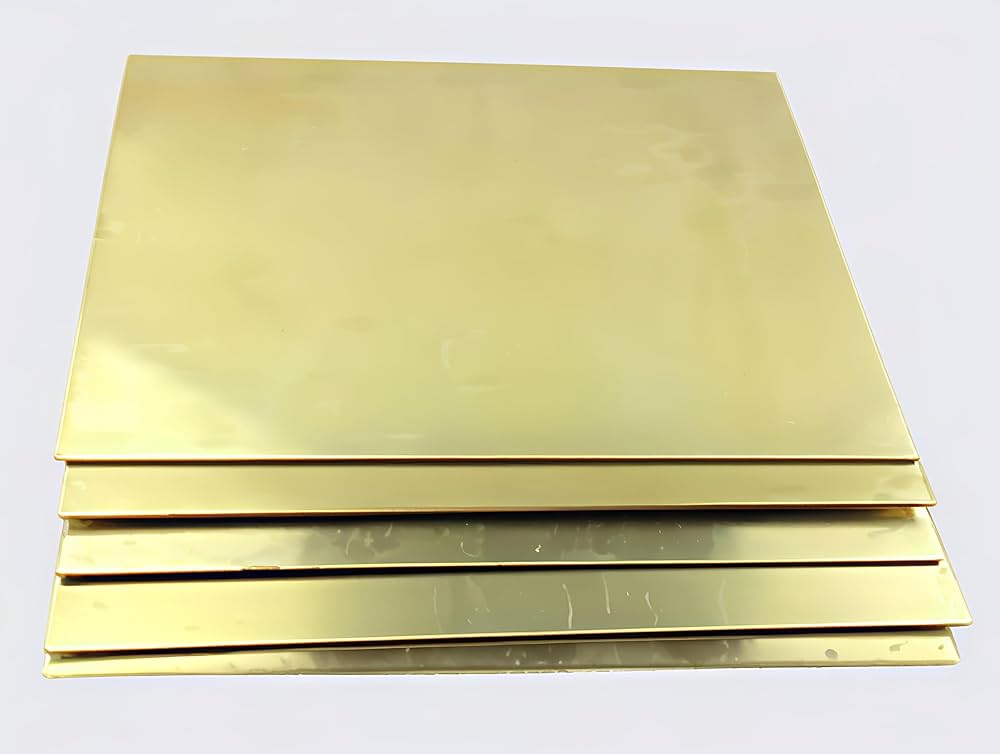

C61400 Weight Chart
| Size (in) | Thk | Lbs/Sheet | Lbs/Sq.Ft |
|---|---|---|---|
| .063 | – | 66.744 | 2.781 |
| 1/8 | .125 | 153.9 | 5.130 |
| 1/8 | .125 | 19.24 | 5.130 |
| 3/16 | .188 | 307.8 | 7.700 |
| 1/4 | .25 | 225.75 | 1.750 |
| 1/4 | .25 | 430 | 1.750 |
| 3/8 | .375 | 615.6 | 15.390 |
| 3/8 | .375 | 628.425 | 15.390 |
| 1/2 | .5 | 615.6 | 2.520 |
| 1/2 | .5 | 666.9 | 2.520 |
| 1/2 | .5 | 82.8 | 2.520 |
| 1/2 | .5 | 985 | 2.520 |
| 3/4 | .75 | 1231 | 32.190 |
| 3/4 | .75 | 1483 | 32.190 |
| 1 | 1.00 | 1641.6 | 41.040 |
| 1 ½ | 1.50 | 206.16 | 64.380 |
| 1 ½ | 1.50 | 309.24 | 64.380 |
| 2 | 2.00 | 2064 | 86.000 |
Mechanical Properties (CA 104)
- Tensile Strength720 - 820 N/mm²
- 0.2% Proof Stress420 - 500 N/mm²
- Hardness200 - 240 HV
- Elongation15 - 25 %
Chemical Composition (%)
| Grade | Al | Fe | Mn | Cu | Pb | Si | P | Zn | Sn | Ni | Imp |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C61900 | 8.0-10.0 | 2.0-4.0 | 0.5 | margin | 0.01 | 0.1 | 0.01 | 1 | 0.1 | 1.7 | |
| C62300 | 8.5-10.0 | 2.0-4.0 | 1.0-2.0 | margin | 0.03 | 0.1 | 0.01 | 0.5 | 0.75 | ||
| C63000 | 9.5-11.0 | 3.5-5.5 | 0.3 | margin | 0.02 | 0.1 | 0.01 | 0.5 | 0.1 | 3.5-5.5 | 1 |
Packing Standards
We apply the safest and most efficient means of packaging for every kind of delivery to ensure your Aluminium Bronze Plates arrive in perfect condition.
Supplier & Exporter Network
Leading suppliers of ASTM B148 UNS C95400 C95400 Aluminum Bronze Sheet. Accepting customized 954 Aluminum Bronze Round Bar orders across India.
