Aluminium Alloy 2014 Circles
Shainal Steel India is a prominent Manufacturer, Supplier, and Stockiest of Aluminium 2014 circles. Aluminium alloy is used to create these circles, blended with metals such as Zinc, Silicon, Copper, Tin, and Manganese. Aluminium 2014 Circle is light in weight and has excellent corrosion resistance in all types of hazardous environments, including acidic environments.
These 2014 circles feature excellent toughness, strength, weldability, machinability, and malleability. This alloy can tolerate a wide range of temperatures, from mild to high. Due to its structure, Alloy 2014 circular has excellent formability and is slip-resistant.
It is highly electrically conductive (density one-third of copper). Because aluminum's surface oxide film possesses both corrosion resistance and insulating capabilities, these circles are widely used in electrical appliances.
Market Pricing
Call for Best Price / kg
We offer the highest quality 2014 Aluminum circles at the most competitive pricing in India. Prices depend on diameter, thickness, and temper requirements.
Quality Assurance
Shainal Steel India is a large-scale manufacturer. We ensure high-quality production where the alloy structure provides excellent formability and slip resistance suitable for high-end sectors like spaceships and satellites.
Applications & Usage
Aluminium 2014 Circles are used in Cookware, electronics, everyday chemicals, medicine, auto parts, spaceships, ships, panning, moulding, printing, domestic utensils, and light covers. It is frequently utilized in transportation (airplanes, automobiles) and high-end sectors like satellites and military vehicles.
Aluminium 2014 Circles

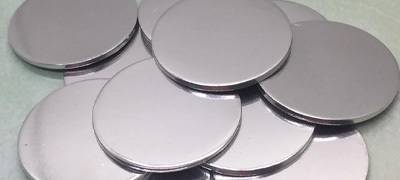

2014 Aluminum Circle
Chemical Composition
| element | value |
|---|---|
| Si | 0.50 - 0.90 |
| Fe | 0.0 - 0.50 |
| Cu | 3.90 - 5.00 |
| Zn | 0.0 - 0.25 |
| Mn | 0.40 - 1.20 |
| Mg | 0.20 - 0.80 |
| Ti | 0.0 - 0.15 |
| Cr | 0.0 - 0.10 |
| Ni | 0.0 - 0.10 |
| Ti+Zr | 0.0 - 0.20 |
| Other | 0.0 - 0.15 |
| Others | 0.0 - 0.05 |
| Al | Balance |
Mechanical Properties
| temper | uts min | uts max | yield min | yield max | elongation |
|---|---|---|---|---|---|
| O (EN AW-2014) | - | 250 Mpa | - | 135 Mpa | 10% |
| T4 (EN AW-2014) | 370 Mpa | - | 230 Mpa | - | 11% |
Equivalent Grades
| standard | grade |
|---|---|
| European Standard | EN AW-2014 |
| BS (OLD) | HE15 |
| WNr | 3.1255 |
| UNS | A92014 |
| ISO | AlCu4SiMg |
| USA (AA) | 2014 |
| GERMANY (DIN) | AlCuSiMn |
| IS | 24345 |
| Canadian | B26S |
Dimensional Tolerances
| parameter | tolerance |
|---|---|
| Thickness (0.71 - 1.4 mm) | +/- 0.08 mm |
| Thickness (1.41 - 2.5 mm) | +0.1, -0.13 mm |
| Thickness (2.51 - 4.0 mm) | +/- 0.13 mm |
| Thickness (4.01 - 5.00 mm) | +/- 0.15 mm |
| Thickness (5.01 - 6.35 mm) | +/- 0.20 mm |
| Ovals Thickness (1.75 - 2.5 mm) | +0.1, -0.13 mm |
| Ovals Thickness (2.51 - 3.00 mm) | +/- 0.13 mm |
| Diameter (Sheared) | +2, -0 mm |
| Diameter (Punched) | +0.5, -0 mm |
Die Sizes
Circles < 2.00 mm Thickness
190.5, 197, 203, 216, 222, 229, 235, 238, 241, 245, 247.5, 250, 254, 267, 273, 279, 280, 292, 300, 305, 307, 330 mm
Circles 2.00 - 6.35 mm Thickness
250, 255, 263, 275, 285, 295, 298, 300, 305, 310, 312, 247.5, 250, 315, 325, 330, 332.5, 335, 336, 350, 355, 358, 360, 365, 370, 375, 380, 385, 387, 390, 395, 406, 410, 412, 415, 416, 430, 435, 456, 465, 484, 485, 489, 490, 517 mm
Ovals 1.75 - 3.00 mm Thickness
198x211, 242.5x159.5, 144x157, 160x173 mm
Quick Specifications
standards
ASTM B209 / ASME SB209
temper
O, T3, T4, T6, T651
thickness
8 mm to 500 mm
diameter
200 mm to 1400 mm
circle diameter
3" DIA up to 38" DIA (1500 lbs max)
finish
Mill, Customer specific finish
type
Hot-Rolled (HR) / Cold-Rolled (CR) Circles
Standard Specs
- ASTM B209Standard Specification for Aluminum and Aluminum-Alloy Circle
- ASTM B632 / B632MStandard Specification for Aluminum-Alloy Rolled Tread Circle
- ASTM B947Standard Practice for Hot Rolling Mill Solution Heat Treatment for Aluminum Alloy Circle
- ASTM B548Standard Test Method for Ultrasonic Inspection of Aluminum-Alloy Circle for Pressure Vessels
- AMS 4001Aluminum Circles, 0.12Cu (1100-0), Annealed
- AMS 4003Aluminum Alloy, Circles, 0.12cu (1100-H14), Strain Hardened
- AMS QQA250/1Aluminum 2014 Circle
