Aluminium Bus Bar

Shainal Steel and Distributor is India’s leading manufacturer and supplier of aluminum bus bars. It is a very malleable substance that can be used in a variety of ways. This material is the best whether flat panels or shapes are required. Different pieces can be easily created using the extrusion method in quick, low-cost procedures.

Aluminum conducts at a lesser rate than copper. We frequently suggest increasing the surface area to allow for heat dissipation. This results in improved heat exchange for more effective thermal dissipation. For the same material cross-section, aluminum has a lower tensile strength (by 37%) than copper.

To match the tensile strength of copper for a certain ampacity, grade 6101 aluminum requires a cross-section that is approximately 66 percent greater than what would be needed for a copper conductor. However, aluminum provides features like compact design, natural corrosion resistance, excellent thermal/electrical conductivity, and is non-magnetic.

Market Pricing

Rs. 160 to Rs. 210 / kg

The price of aluminium busbar is influenced by market demand, global aluminum prices, manufacturing costs, and any additional processing required. The average price range is approximately Rs. 160 to Rs. 210 per kg.

Quality Assurance

We provide comprehensive design skills that encompass plating and powder coating services in addition to machining, forming, brazing, and welding procedures. We create cutting-edge designs for lightweight, high-performance aluminum bus bars, which results in lower labor costs for installation and support.

Applications & Usage

Where heat can be quickly dispersed, aluminum bus bars are frequently used as electrical conductors in power distribution systems. The low price of the metal makes it potentially the most cost-effective choice for the application.

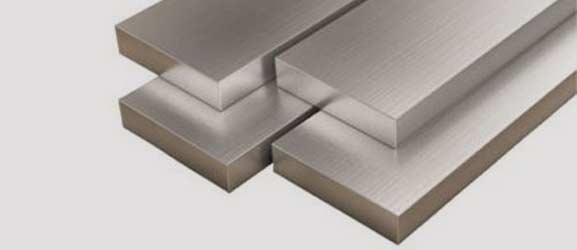

Aluminium Electrical Bus Bars

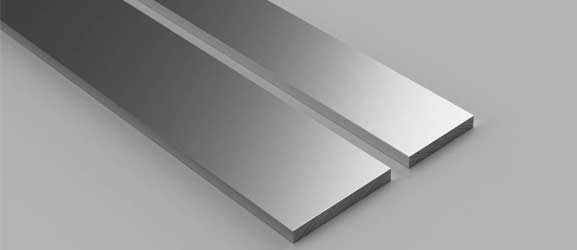

Aluminium Flat Bus Bars

Physical Properties

property	value
Density	2.82 g/cm³
Melting Point	535 °C
Modulus of Elasticity	71 GPa
Electrical Resistivity	0.045 x10^-6 Ω .m
Thermal Conductivity	138 W/m.K
Thermal Expansion	23 x10^-6 /K

International Standards

region	specification	alloy	temper
Europe	EN 2089/2395	2017	T6(T62)/T4(T42)
Europe	EN 2087/2088	2017 clad	T6(T62)/T4(T42)
France	AIR 9048.010/.030/.020/.040/.050	2017	F(T42)/F(T62)/T4/T6/T451
France	AIR 9048.060/.080/.070/.090	2017 clad	F(T42)/F(T62)/T4/T6
Germany	W.-Nr. 3.1254	2017	T4, T6
Germany	W.-Nr. 3.1354	2024	O(T42), T3
United Kingdom	BS L156/157/158/159	2017	-
United Kingdom	158/159	2017 clad	(T42)(T62)
United Kingdom	BS L163/164/165	2017 clad	T3/F(T42), T4/T6
United Kingdom	BS L166/167	2017 clad	F(T42), T4/T6
USA	AMS QQ-A-250/3	2017 clad	O, T4, T6

Weight Chart

product	diameter	weight
Aluminium Bus Bar	6 mm	0,076 Kg/m
2017 Aluminium Bus Bar	7 mm	0,104 Kg/m
2017 Aluminium Bus Bar	8 mm	0,136 Kg/m
2017 Aluminium Bus Bar	9 mm	0,172 Kg/m
2017 Aluminium Bus Bar	9,5 mm	0,191 Kg/m
2017 Aluminium Bus Bar	10 mm	0,212 Kg/m
2017 Aluminium Bus Bar	11 mm	0,257 Kg/m
2017 Aluminium Bus Bar	12 mm	0,305 Kg/m
2017 Aluminium Bus Bar	12,5 mm	0,331 Kg/m
2017 Aluminium Bus Bar	13 mm	0,358 Kg/m
2017 Aluminium Bus Bar	14 mm	0,416 Kg/m
2017 Aluminium Bus Bar	16 mm	0,543 Kg/m
2017 Aluminium Bus Bar	16,5 mm	0,577 Kg/m
2017 Aluminium Bus Bar	18 mm	0,687 Kg/m
2017 Aluminium Bus Bar	19 mm	0,766 Kg/m
2017 Aluminium Bus Bar	20 mm	0,848 Kg/m
2017 Aluminium Bus Bar	22 mm	1,026 Kg/m
2017 Aluminium Bus Bar	25 mm	1,325 Kg/m
2017 Aluminium Bus Bar	28 mm	1,663 Kg/m
2017 Aluminium Bus Bar	30 mm	1,909 Kg/m
2017 Aluminium Bus Bar	31 mm	2,038 Kg/m
2017 Aluminium Bus Bar	32 mm	2,171 Kg/m
2017 Aluminium Bus Bar	35 mm	2,598 Kg/m
2017 Aluminium Bus Bar	38 mm	3,062 Kg/m
2017 Aluminium Bus Bar	40 mm	3,393 Kg/m
2017 Aluminium Bus Bar	45 mm	4,294 Kg/m
2017 Aluminium Bus Bar	50 mm	5,301 Kg/m
2017 Aluminium Bus Bar	55 mm	6,415 Kg/m
2017 Aluminium Bus Bar	60 mm	7,634 Kg/m
2017 Aluminium Bus Bar	65 mm	8,959 Kg/m
2017 Aluminium Bus Bar	70 mm	10,391 Kg/m
2017 Aluminium Bus Bar	75 mm	11,928 Kg/m
2017 Aluminium Bus Bar	80 mm	13,572 Kg/m
2017 Aluminium Bus Bar	90 mm	17,177 Kg/m
2017 Aluminium Bus Bar	100 mm	21,206 Kg/m
2017 Aluminium Bus Bar	105 mm	23,379 Kg/m
2017 Aluminium Bus Bar	110 mm	25,659 Kg/m
2017 Aluminium Bus Bar	120 mm	30,536 Kg/m
2017 Aluminium Bus Bar	127 mm	34,203 Kg/m
2017 Aluminium Bus Bar	130 mm	35,838 Kg/m
2017 Aluminium Bus Bar	140 mm	41,563 Kg/m
2017 Aluminium Bus Bar	150 mm	47,713 Kg/m
2017 Aluminium Bus Bar	180 mm	68,707 Kg/m
2017 Aluminium Bus Bar	200 mm	84,823 Kg/m

Quick Specifications

surface finish

Smooth and Bright

usage

Electrical Panel Boards

dimensions

ASTM, ASME, AMS

specifications

ASTM B221, B211, B565, B316, AMS 4121 2014

Standard Specs

ASTM B211 / ASME SB211Specification for Aluminum and Aluminum-Alloy Rolled or Cold Finished Bar, Rod
ASTM B221 / ASME SB221Specification for Aluminum and Aluminum-Alloy Extruded Bars, Rods
ASTM B565 / ASME SB565Test Method for Shear Testing of Aluminum and Aluminum-Alloy Rivets and Cold-Heading Rods
ASTM B316 / ASME SB316Standard Specification for Aluminum and Aluminum-Alloy Rivet and Cold-Heading bars and Rods
AMS 4102 / ISO Al99.0CuStandard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Bars, Rods
